OLED transparent screen

OLED transparent screen

OLED transparent screens have very high contrast, reaction speed, and color saturation. OLED liquid crystal displays have the advantages of high resolution, thin thickness, light weight, low energy consumption, long lifespan, and no radiation! This transparent OLED does not require backlighting, and its transparency effect is much better than traditional LCD backlit box type transparent screens.

With an ultra-thin OLED module structure, it greatly improves the overall architecture of the original LCD display screen, breaks through the playback form of traditional displays, and expands the application range of traditional displays.

我要采购 立即咨询

产品详情 & 参数

OLED transparent screens have very high contrast, reaction speed, and color saturation. OLED liquid crystal displays have the advantages of high resolution, thin thickness, light weight, low energy consumption, long lifespan, and no radiation! This transparent OLED does not require backlighting, and its transparency effect is much better than traditional LCD backlit box type transparent screens.

With an ultra-thin OLED module structure, it greatly improves the overall architecture of the original LCD display screen, breaks through the playback form of traditional displays, and expands the application range of traditional displays.

1. Perfect viewing angle, wide viewing angle OLED has a wide viewing angle, and can maintain stunning visual effects from all angles.

2. Excellent black infinite contrast and perfect black self luminous pixels can be independently turned on and off, presenting perfect black. No light leakage, absolute black creates infinite contrast.

3. The perfect industrial design is from light to thin, with only two layers of structure, OLED has an incredibly lightweight body.

4. Ultimate color accuracy&stable color self emitting pixels can accurately restore colors and bring them to life.

5. Smooth dynamic graphics are more responsive. OLED has a dynamic graphics response time 5000 times faster, perfect clarity and no lag.





panel OLED industrial grade commercial display
Physical resolution 1920x1080 (FHD)
brightness 150-400 (cd/㎡) self regulating
contrast ratio 150000:1
response time 1ms grayscale to grayscale, 8ms dynamic screen response time
Display Color 10-bit, 1.07B (1B=1 billion)
viewing angle 178°(H) / 178°(V)
Screen Scale 16:09
Run time 18 hours/day
Overall dimensions 1221.5mm × 699.35mm × 1.78mm (width × high × Thick)
Display area size 1209.6 X 680.4mm (W × High)
Splicing gap 11.8mm (theoretical value)
Single screen white edge (mm) 5.9/5.9/5.9/13 (left/right/up/down)
Transmittance 38%
weight Screen weight 3.14kg
Power Supply Power consumption 190W
service life 30000 hours
environment Working temperature 5 ℃~45 ℃, working humidity 30%~80%, environmental altitude (altitude) 0-5000m

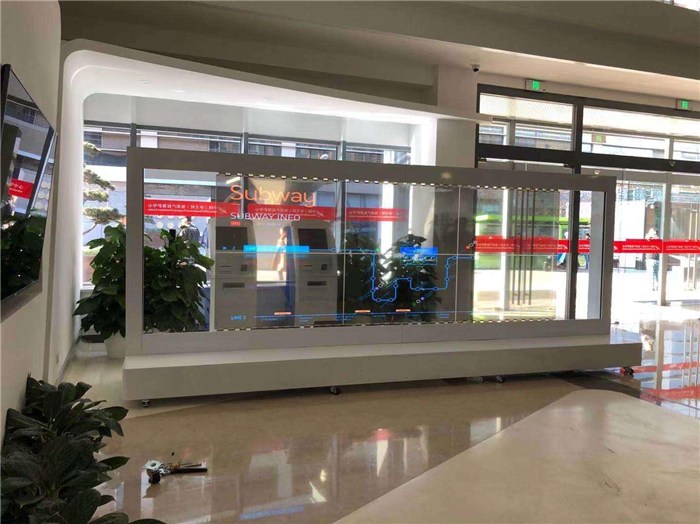

Simply put, it can be used anywhere with glass. Transparent OLED screentransparencyReaching 40%, regardless of whether it is turned on or off, it is almost identical to regular glass when the content is not displayed. such asglass screen wall、Commercial showcaseShowroom display cabinets, windows, and so on can all be used.
