Intelligent magic wall processor
Intelligent magic wall processor can support any number of display devices, any angle, any position, any mixed size, any output resolution. The diversity of structure makes it suitable for all kinds of space and all kinds of occasions. It can support the creative modeling splicing of LED display, LCD splicing screen, projection equipment, ordinary display, TV and other devices. Because each channel output can support any customized resolution and mixed resolution, and even realize the mixed use of a variety of different display devices, it greatly expands the flexibility and range of creative display.
我要采购 立即咨询产品详情 & 参数

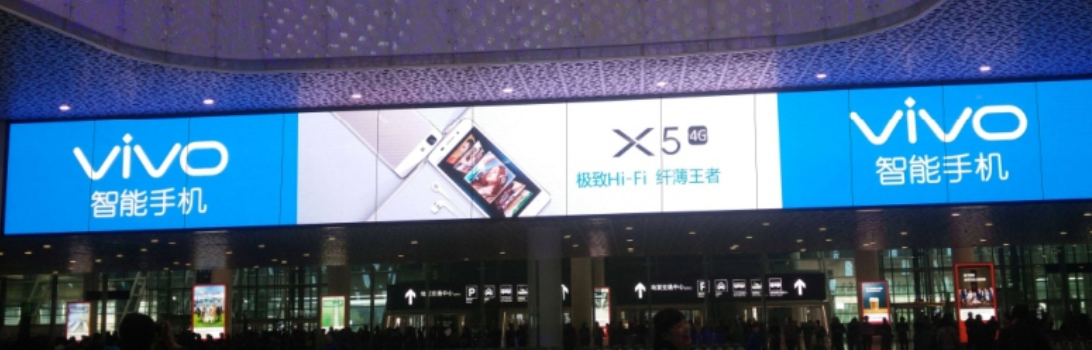

2. Super long splicing:
Form a long strip to achieve a shocking visual effect!
3、 Ultra high splicing:
The super high screen wall is suitable for interior decoration4. Large splicing:
Point to point super clear solution is the best choice!5. Special shaped (art wall) splicing:
No limitation of space and time! Super high, no deformation, no stretching! More modeling can consult the relevant staff!
Technical parameters - single 4-way output parameters (suitable for 4 screens and the following items)：
| Unit 4-way output parameters | |
|---|---|
| Product specification name | Specification parameters |
|
Input interface type |
USB TYPE B 3.0 Interface |
|
Output interface type |
4 HDMI outputs, 1 3.5mm headphone stand audio output |
|
Output resolution (compatible with other resolutions) |
7680*1080、3840*2160、1920*4320、4320*1920、1080*7680、2160*3840 |
|
Size |
482.6*396.8*44 mm |
|
Weight |
1.5kg |
|
Power Supply |
12V@3A DC |
| Warranty | A year |
Chassis card type parameters (suitable for 4-screen and above projects)：
| Chassis card type parameters | |
|---|---|
| Product specification name | Specification parameters |
|
Chassis size |
2U、 3U、 7U Plug in design, one card with four outputs |
|
Input interface type |
USB TYPE B 3.0 Interface |
| Output interface type | 4 HDMI outputs, 1 3.5mm headphone stand audio output |
|
Output resolution (compatible with other resolutions) |
The resolution of 8K is equal proportion adaptive, no deformation and no stretch |
|
Size |
482.6*396.8*44 mm |
|
Weight |
It depends on the size of the chassis |
|
Power Supply |
100-240V AC |
| Warranty | A year |
Minimum configuration requirements of computer and operating system:
| Minimum computer configuration parameters | |
|---|---|
| Product specification name | Specification parameters (8K effect) |
| A main board | i7-8700K And above |
| Memory |
Dual channel 32GB |
| Graphics card | Unique NVIDIA Geforce GTX160 Above |
| System | WIN 10 X64 |
| USB | USB 3.0 Interface |
| Product specification name | Specification parameters (4K effect) |
| A main board | i5-8500And above |
| Memory | Dual channel 16GB |
| System | WIN 10 X64 |
| USB | USB 3.0 Interface |
Note: the specific computer performance requirements are determined according to the application requirements of the actual project. The above configuration only provides the minimum requirements and specifications for reference!
Product display-2U Chassis:
Product display-4 Out:
For more specifications, please consult the relevant staff!
Matrix wall connection diagram:
Special shaped (art wall) connection diagram:
Point to point, no deformation, no stretch, no multi screen graphics card!
Complete machine list:
| Name | Specification parameters |
| Host | SMWP3000-04-M (for example) |
| USB flash disk file | Operating software + instruction manual |
| Certificate and warranty card | 1 sheet |
| Adapter or 1.8m power supply wire | 12V 3A 1 (4); 1.8m power supply line (2U, 3U) |
| USB Line | 3M USB 3.0 cable |
| Operation software | Specification parameters |
| Matrix wall | MagicWallSW-ForMatrixWall R0025 20200918 |
| Special shaped wall | MagicWallSW-ForArtWall R0025 20200918 |
