Wall-mounted touch all-in-one machine, which integrates advanced touch screen, industrial control, computer and other technologies, can realize public information query, multimedia teaching, daily office, hotel catering, etc., equipped with scanners, card readers, micro printers and other peripherals, It can meet specific needs such as card swiping and printing. It can easily realize various operations such as video playback, picture display, viewing, Internet access, annotation, presentation and interaction, multi-touch, etc., making application presentations such as conferences, training, classrooms, presentations, and queries more vivid, lively, efficient, and man-machine The interaction is more intuitive, convenient and convenient.
我要采购 立即咨询产品详情 & 参数

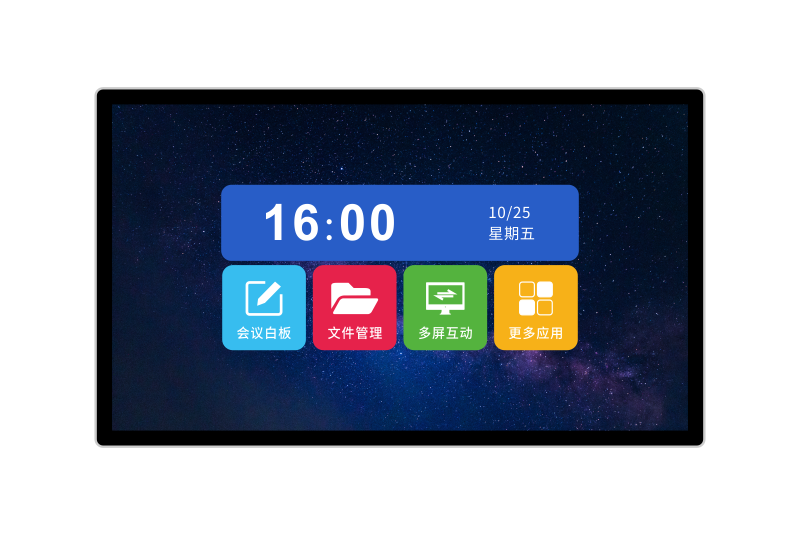

华云视界——壁挂式红外触摸一体机
产品特点:
☞流线型机身,设计美观时尚,完美融入商/住环境;
名称 | 壁挂红外触摸系列(32寸、43寸、49寸、55寸、65寸、86寸、98寸) | ||||||||||||
尺寸 | 43寸壁挂红外触摸一体机——规格参数 | ||||||||||||
显 示 参 数 |
背光类型 | ELED | |||||||||||
分 辨 率 | 1920*1080 | ||||||||||||
视 角 | 178° | ||||||||||||
亮 度 | 350cd/㎡(中心点、典型) | ||||||||||||
对 比 度 | 1400:01:00 | ||||||||||||
响应时间 | 4ms | ||||||||||||
显示区域 | 904.2*528mm | ||||||||||||
边框颜色 | 黑色/银色可选 | ||||||||||||
触 摸 参 数 |
触摸技术 | 红外触摸 | |||||||||||
钢化玻璃 | 厚度大于3MM | ||||||||||||
书写方式 | 手指、触摸笔 | ||||||||||||
理论点击次数 | 6亿次以上的单点触摸 | ||||||||||||
触摸精度 | 95%的区域定位误差小于2mm、边缘定位误差小于5mm | ||||||||||||
支持触摸点数 | 10点触 | ||||||||||||
机 身 参 数 |
外壳材料 | 铝型材、钣金 | |||||||||||
机身尺寸 | 986*581*66.7(长*宽*厚度) | ||||||||||||
挂架尺寸 | 200*100*10MM | ||||||||||||
包装尺寸 | 1125*190*710MM | ||||||||||||
套料净重 | 23KG | ||||||||||||
带包装重 | 29KG | ||||||||||||
输入电压 | AC110-220V | ||||||||||||
系 统 参 数 |
C P U | Intel i3 2代 主频2.4 | |||||||||||
内 存 | 4G | ||||||||||||
硬 盘 | 128G | ||||||||||||
接 口 | DC*1/HDMI*1/VGA*1/RS232*1/RJ45*1/USB2.0*2/USB3.0*2/MIC*1/PCAudio*1 | ||||||||||||
预装系统 | Windows7旗舰版 | ||||||||||||
选配 | 以上系统配置可以更具实际需求更换配置,或者更换为安卓系统 | ||||||||||||
整 机 配 件 |
机 器 | 1台 | |||||||||||
中性包装 | 1个 | ||||||||||||
电 源 线 | 1条 | ||||||||||||
壁 挂 架 | 1副 | ||||||||||||
WiFi棒 | 1个 | ||||||||||||
保修卡合格证 | 各一张(中性) | ||||||||||||
机 器 尺 寸 图 |
![]() |
||||||||||||
