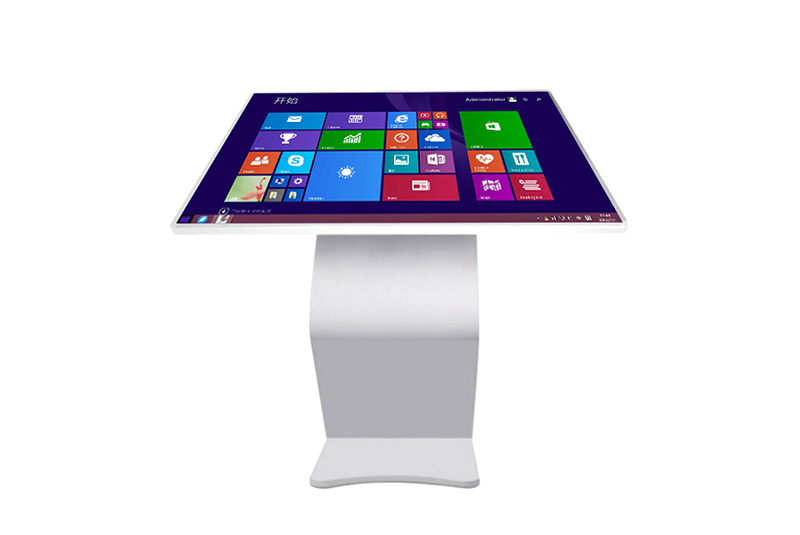

Horizontal-k type touch machine
Horizontal-K-type touch integrated machine integrates advanced touch screen, industrial control, computer and other technologies in one, which can realize public information query, multimedia teaching, daily office, hotel catering, etc. Designed to meet specific needs such as card swiping and printing. It can easily realize various operations such as video playback, picture display, viewing, Internet access, annotation, presentation and interaction, multi-touch, etc., making application presentations such as conferences, training, classrooms, presentations, and queries more vivid, lively, efficient, and man-machine The interaction is more intuitive, convenient and convenient.
我要采购 立即咨询产品详情 & 参数
Vertical touch all-in-one machine features:
☞ Streamlined body, beautiful and fashionable design, ergonomic design;
☞ METAL SHELL DESIGN, EMBEDDED WITH 4MM TEMPERED GLASS, PROVIDING GOOD PROTECTION FUNCTION;
☞ Industrial grade aluminum profile, cold-rolled steel plate, not easy to deform, to ensure that the shape remains unchanged for a long time;
☞ Ultra-thin LED LCD screen, high definition and high brightness of the image, showing perfect high-definition picture quality;
☞ A variety of signal interfaces, support a variety of signal input/output;
☞ Low power consumption, zero noise, good heat dissipation design, support all-weather operation;
☞ Infrared touch, capacitive touch optional, high sensitivity, fast speed, fast human-computer interaction query without pause;
☞ Professional industrial control motherboard, Intel high-end processor, support multi-touch;
☞ It is suitable for education and training, exhibition, public media, video conference, military command, traffic management, etc.
Specifications (please contact customer service for more parameters):
|
Product specifications |
32 ", 43", 49 ", 55", 60 ", 65" |
|
|
display show screen ginseng number |
resolving power |
1920 * 1080 |
|
brightness |
300/350/450/500cd/mtwo |
|
|
contrast ratio |
1100:1/1200:1/3000:1/4000:1 |
|
|
color |
16.7M |
|
|
response time |
8 ms |
|
|
viewing angle |
178 ° |
|
|
touch feel screen ginseng number |
Touch type |
Infrared touch and capacitive touch are optional |
|
Touch Media |
Fingers, touch pens, etc |
|
|
Interface type |
USB |
|
|
Transmittance |
≥ 95% |
|
|
response speed |
<8ms |
|
|
Scanning rate |
50scans/s |
|
|
Durability |
Withstand over 60 million single touch attempts |
|
|
main machine match Set |
motherboard |
1037U industrial motherboard (H81 optional) |
|
CPU |
1.8G dual core (I3/I5 optional) |
|
|
Memory |
2G (4G/8G optional) |
|
|
Hard drive |
320G or 60G solid-state drive (optional with 120G SSD/500G HDD) |
|
|
network card |
RJ45, WIFI |
|
|
operating system |
Android system, Windows 7-10 optional |
|
|
Signal interface |
VGA/HDMI/USB |
|
|
source power dissipation |
supply voltage |
AC 100-240V (50/60Hz) |
|
Working power consumption |
≤ 580W |
|
|
standby power |
≤ 3W |
|
|
apply environment |
Working environment temperature |
0-40 ℃ |
|
Working environment humidity |
20% to 80% |
|
|
Storage temperature |
-20-60 ℃ |
|
|
Storage humidity |
10% to 85% |
|
|
Note: The optional option is an additional one. Please consult sales for details. |
||
